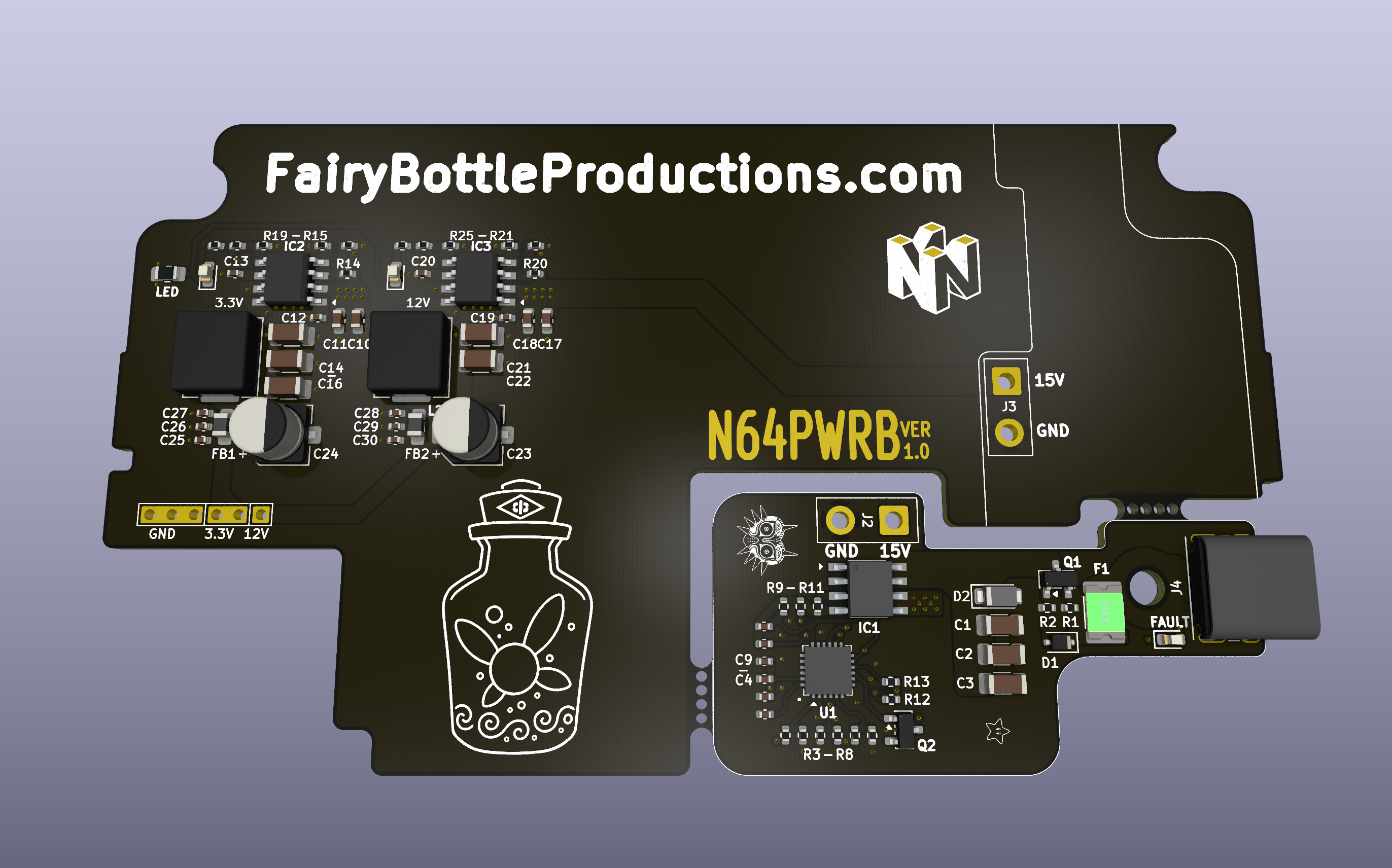

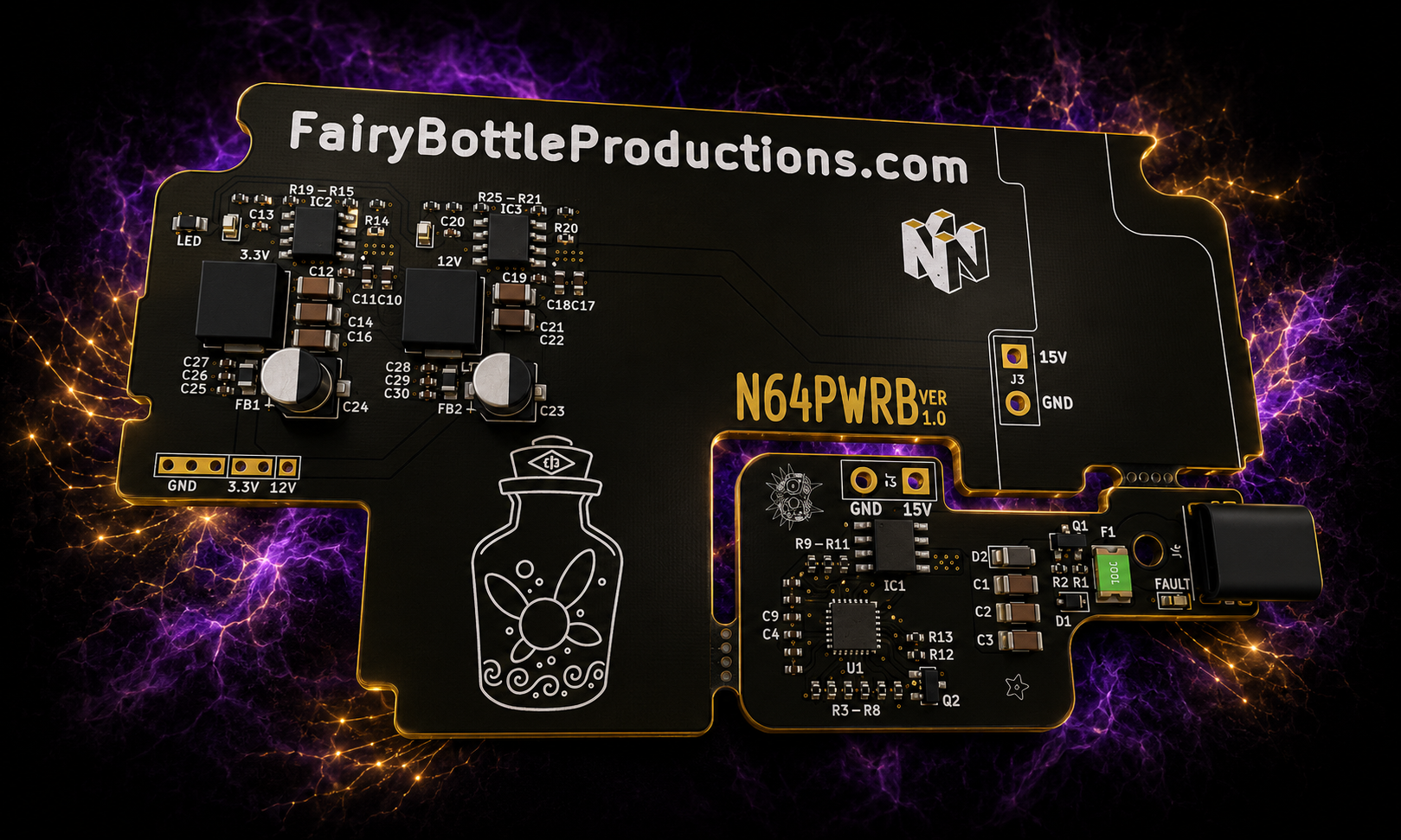

N64PWRB – USB-C Power Board for Nintendo 64

Give your Nintendo 64 a modern, reliable power solution without sacrificing the original look of your console.

The N64PWRB replaces the aging factory power supply with a compact internal USB-C powered solution. Simply connect a compatible USB-C Power Delivery power adapter and enjoy clean, efficient power for your console without the bulky original power brick.

Designed from the ground up for reliability, the N64PWRB uses modern high-efficiency power converters to provide stable 3.3V and 12V power while generating significantly less heat than older power supply designs. Integrated protection circuitry helps safeguard both your console and the power board during everyday use.

Features

• USB-C Power Delivery powered

• Replaces the original board and utilizes power supply housing.

• High-efficiency switching power supplies

• Stable 3.3V and 12V output rails

• Reverse polarity and input protection

• Designed for low standby power consumption

• Professionally manufactured PCB using high-quality components

• Fault light to indicate incompatible power brick

Benefits

• Replace aging original power supplies

• Cleaner and more efficient power delivery

• Modern USB-C convenience

• Ideal for restored, modified, or custom Nintendo 64 consoles

Compatibility

Compatible with OEM N64 power supplies with the larger cable opening.

What's Included

• N64PWRB USB-C Power Board

• Custom Face plate

• Wire for installation

Installation Overview

Installation requires moderate soldering experience. The process includes testing the console to verify proper operation, discharging the capacitors, disassembling the power brick, desoldering the original power connector from the pcb, soldering the N64PWRB board in its place, installing the included USB-C faceplate, and reassembling the power brick. The result is a clean, factory-style installation utilizing the original power brick housing.

Power Adapter Requirements

Requires a USB-C Power Delivery (PD) power adapter capable of supplying a minimum of 15V@2A. A quality USB-C PD adapter is recommended for reliable operation.

Whether you're restoring a favorite childhood console or building the ultimate custom Nintendo 64, the N64PWR delivers modern power technology in a compact, reliable package designed specifically for the N64.
