N64PWR Install Instructions

N64PWR Install Instructions

N64PWR Installation Guide

Overview

N64PWR is a replacement power supply for the Nintendo 64, designed to provide clean, reliable power while replacing the original external power supply.

Protections, Status LEDs, and Power Requirements

N64PWR includes multiple built-in protection features to ensure safe and reliable operation of your Nintendo 64 console. These protections are designed to safeguard both the console and the power source during normal use and fault conditions.

Built-in Protection Features

  • Over-Current Protection (OCP): Automatically limits current draw to prevent damage in the event of a short or excessive load on the 3.3V or 12V rails.

  • Over-Voltage Protection (OVP): Prevents unsafe voltage levels from reaching the console if an incompatible or faulty power source is connected.

  • Short-Circuit Protection: Detects direct shorts between power rails and ground, shutting down or limiting output to protect both the N64PWR board and the console motherboard.

  • USB-C Power Negotiation (PD): Actively negotiates the correct voltage profile from the connected USB-C power adapter to ensure stable 15V input operation.

LED Functionality

N64PWR features two onboard green status LEDs that provide real-time feedback on power and negotiation status:

  • Both Green LEDs ON: The board has successfully negotiated the required power profile and all internal rails (3.3V and 12V) are active and stable. This indicates normal operating conditions.

  • Single Red LED (if present on input stage): The connected power source is not providing the required 15V profile or sufficient current capability. The board will not fully enable output rails in this state.

  • No LEDs: No valid power input is detected, or protection mode has been triggered due to a fault condition.

These LEDs are intended for diagnostic use during installation and troubleshooting. Once installation is complete, the green LEDs may optionally be disabled by removing the onboard “LED” 0Ω resistor if a fully dark internal appearance or minimal standby draw is desired.

Suitable Power Bricks

N64PWR requires a USB-C Power Delivery (PD) compatible power adapter capable of supplying:

  • Minimum: 15V at 2A (30W)

  • Recommended: 30W or higher USB-C PD power brick

Most modern USB-C laptop or tablet chargers rated at 30W, 45W, or 65W are suitable, provided they support a 15V PD profile. Lower-quality or phone-only chargers that do not support 15V negotiation will not function correctly and may result in a red LED indication or failure to power the console.

For best performance and long-term reliability, always use a certified USB-C PD power adapter from a reputable manufacturer.

Before You Begin

Important: Use a Known Working Console

Before beginning installation, ensure you are using a known-good, fully functional Nintendo 64 console. The system should already power on and boot normally with a verified working power supply, video cable, and game cartridge. This ensures that any issues encountered during or after installation can be accurately attributed to the N64PWR installation rather than pre-existing faults in the console.

Required Tools

  • 4.5 mm Gamebit driver

  • #2 Phillips screwdriver

  • #1 Phillips screwdriver

  • Flush-cut snippers

  • Multimeter

  • Desoldering tools (wick, solder sucker, low-temp solder)

  • Soldering iron

  • Kapton tape

  • FLUX! Don't skimp on flux.

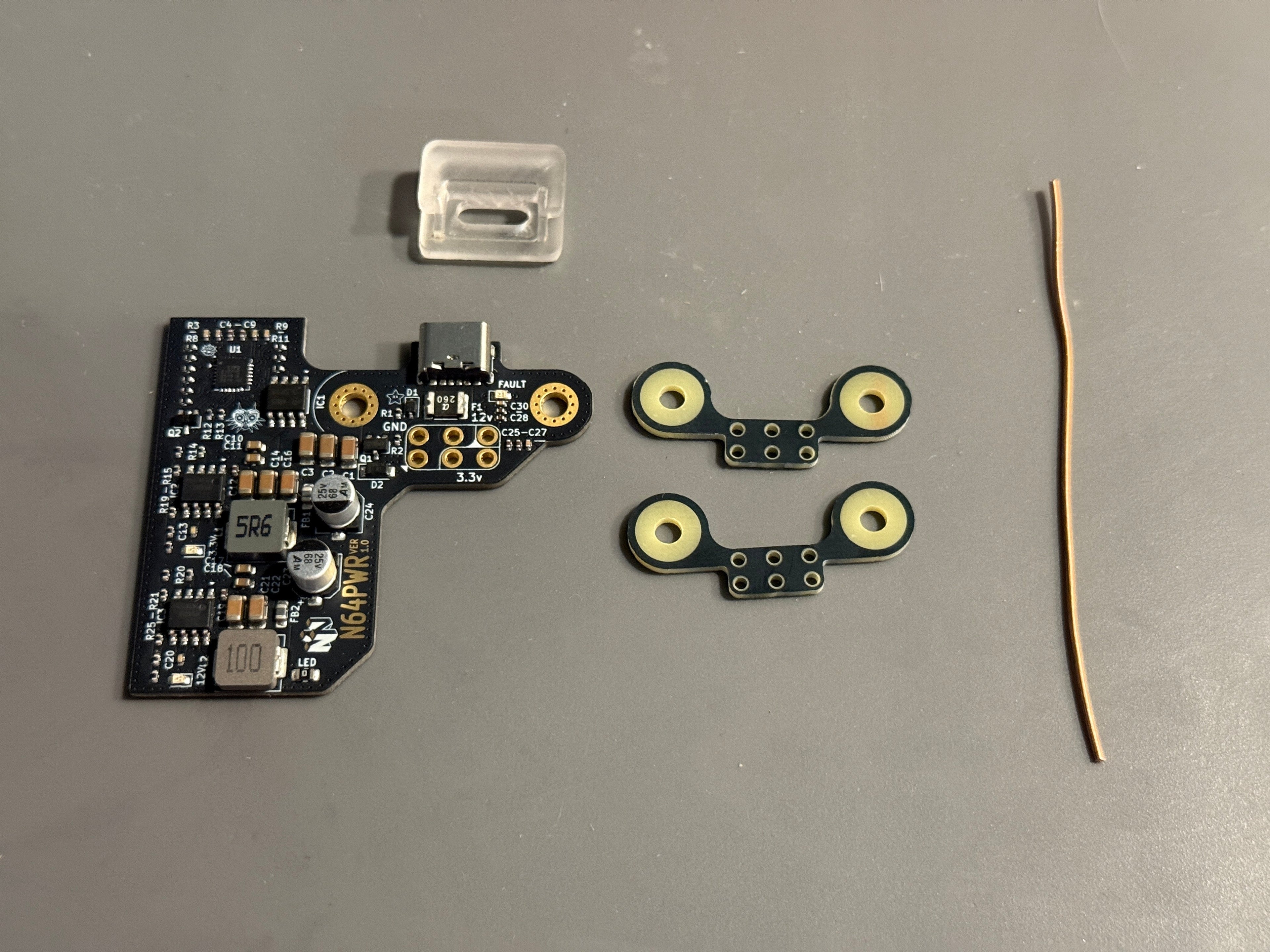

Included with Your Purchase

  • N64PWR PCB

  • 2 spacers to set the correct height for the plug

  • 1.0 mm copper wire

  • 3D-printed faceplate

Safety

Disconnect the Nintendo 64 from mains power before beginning the installation.

Do not work on the console while it is connected to a power source. Before beginning, disconnect from mains power and toggle the power button several times to help discharge any residual charge in the capacitors. Always use appropriate PPE. Soldering produces fumes and involves handling lead-based materials.

1. Verify N64PWR Function

  1. Connect the N64PWR board to a suitable USB-C power source.

  2. Confirm that both green LEDs on the board illuminate.

  3. Using a multimeter, measure the output rails to verify correct voltages are being supplied.

  4. Do not proceed with console installation until proper voltage output and LED status have been confirmed.

  5. De-burr edges.  Sometimes when the PCB panel is separated sharp edges can remain.

2. Disassemble Console and Remove the Motherboard

  1. Fully disassemble the console shell.

    Step-by-step shell disassembly:

    • Flip the console upside down.

    • Remove the six (6) 4.5 mm Gamebit screws from the bottom shell.

    • Keep screws organized by location.

    • Carefully lift the top shell straight up and set it aside.

    • Important: The Expansion Pak or Jumper Pak must be removed before lifting the top shell off.

  2. Remove the motherboard (PCB) from the system.

    Step-by-step motherboard removal:

    • Remove the six (6) gold screws securing the RF shield (#2 Philips).

    • Remove the two (2) screws located by the game cartridge slot (#2 Philips).

    • Remove the two (2) screws located by the expansion port slot (#1 Philips).

    • Remove the two (2) screws with washers in the middle of the heatsink (#2 Philips).

    • Gently twist and lift the upper RF shield and heatsinks together as one unit.

    • Remove the four (4) silver screws located by the power and Multi Out ports (#2 Philips).

    • The motherboard should now be free and lift out easily. Be aware that the Multi Out filler block will become loose and fall out when the motherboard is removed.

3. Remove the Original Power Plug from the N64 Motherboard

There are three methods for removing the original power connector. Choose the method or combination of methods that best matches your tools and experience level:

  • Method 1: Solder Wick and Flux

    • Apply flux generously to all pins of the power connector.

    • Use solder wick to desolder each pin individually.

    • Reapply flux as needed to ensure clean solder removal.

    • Gently work across all pins until the connector is fully free.


  • Method 2: Solder Sucker (Desoldering Pump)

    • Heat each solder joint on the power connector pins.

    • Use a solder sucker to remove molten solder from each joint.

    • Repeat until all pins are fully cleared of solder; adding fresh solder and flux can help make removal easier.


  • Method 3: Low-Temperature Solder Removal

    • Apply low-melt solder alloy to all existing joints.

    • Use a soldering iron with sufficient heat to keep the alloy molten.

    • Work evenly across all pins until the connector loosens.

    • Continue heating gently until the connector drops free.


Important Note: Before attempting removal, flip the board upside down so the plug can fall out freely under its own weight. The power plug should fall out of the motherboard with no force required. If any force is needed, stop immediately and continue desoldering. Forcing the connector can damage the PCB pads or traces.

4. Install N64PWR

  1. Place the motherboard back into the bottom shell. You do not need the filler block for the Multi Out.

  2. Position both spacers and the N64PWR board where the original power plug was located.

  3. Secure the assembly using the two silver screws. Thread them in evenly, but leave them slightly loose for now to allow adjustment.

  4. Cut the copper wire into three equal lengths, then bend each piece into a “U” shape sized to fit the N64PWR through-holes.

  5. Insert the three prepared wire pieces so that all six pin holes are occupied.

  6. Align the N64PWR board with the console shell, ensuring it sits flush and properly oriented.

  7. Tighten the two silver mounting screws evenly to secure the motherboard and N64PWR assembly. Do not fully torque them down; they should be snug enough to hold alignment while still allowing minor adjustment if needed.

  8. Apply flux generously, then solder all six wire holes on the N64PWR board. Ensure each joint is fully wetted and properly flowed into both the pad and wire.

  9. Leave the copper wires in their “U” shaped configuration for now. Do not trim or finalize their length at this stage, as they will be cleaned up later to help prevent shorts and simplify soldering on the opposite side.

  10. Remove the two silver mounting screws.

  11. Carefully lift the motherboard and N64PWR assembly out of the console shell as a single unit and place the shell to the side, taking care not to stress or drop the N64PWR board while flipping the assembly.

  12. Reinsert the two silver screws from the bottom side of the motherboard, passing them up through the N64PWR board to maintain alignment with the original mounting position. Use Kapton tape and/or tweezers as needed to secure and stabilize the N64PWR board while completing soldering on the opposite side. Ensure the board remains properly aligned and does not shift during the process.

  13. Gently bend the copper wires on the underside to help hold the N64PWR board in place and maintain stable contact during soldering.

  14. Solder all six pins on the bottom side of the motherboard using plenty of flux.

  15. Carefully trim the excess copper wire from both the top and bottom of the board for a clean, flush installation. Take care not to stress the solder joints while cutting.

  16. Using a multimeter, verify that there are no shorts between GND, 12V, and 3.3V. These rails are clearly labeled on the N64PWR board. Of the six connections, three pins are GND, two are 3.3V, and one is 12V. Confirm continuity only where expected and ensure no unintended bridges exist between any power rails.

  17. If any shorts are detected, stop immediately and troubleshoot the affected joints. Reapply flux as needed, reflow the solder connections, and resolder any suspect joints until all shorts are fully resolved and proper isolation between rails is confirmed.

!! Double-check every connection before applying power !!

5. Initial Power-Up Test

Do not fully reassemble the console yet.

  1. Place the motherboard back into the bottom shell and verify alignment of the N64PWR with the shell.

  2. Test fit the faceplate. Carefully lift the back of the motherboard and slide the faceplate onto the USB-C connector, then drop it into place.

  3. Place the top RF shield and heatsink assembly back on top of the motherboard.

  4. Place the top half of the shell back onto the console. Do not force it into place. If it does not seat properly, verify the position of the power switch and ensure nothing is obstructing alignment.

  5. Install the Expansion Pak or Jumper Pak.

  6. Note: No screws are required at this stage. This step is only for verifying that the power system functions correctly. Plug in a compatible USB-C charger brick.

    • If you see a red LED, the board has attempted to negotiate power but is unable to receive the required 15V at 2A.

    • If you see two green LEDs, the board has successfully negotiated the required power and both rails are powering the rails.

  7. Turn on the Nintendo 64 console and verify that the red LED on the front of the console illuminates. If this checks out, connect the console to a TV, insert a game cartridge, and repeat the test with a controller connected. Verify that the console boots correctly and is fully playable.

If the console does not behave as expected, disconnect power immediately and re-check the installation.

If installation and initial testing are successful, there is a small resistor on the bottom of the N64PWR board labeled “LED.” This is a 0Ω resistor that, when removed, disables the two green status LEDs. Disabling the LEDs can help prevent unwanted light leakage inside the console and also slightly reduce quiescent current draw. While the power consumption of the LEDs is very small, it is not zero; removing this resistor eliminates their standby draw entirely. This modification is optional and is intended for users who want the lowest possible idle power consumption or a completely dark internal installation.

6. Reassemble the Console

Once the installation has passed testing:

  1. Remove the top shell and install the USB-C faceplate and Multi-Out filler block.

  2. Reinstall all screws in reverse order as detailed in Step #2.

  3. Replace the top shell and install the Expansion Pak or Jumper Pak, along with its cover.

  4. Flip the console over and install both feet and the six (6) Gamebit screws.

  5. Perform one final function check.

Congratulations!  Your Installation is now Complete!

Troubleshooting

Console Does Not Power On

  • Disconnect power.

  • Verify the N64PWR connections.

  • Check for shorts between power and ground.

  • Verify the input power source.

Console Powers On but Does Not Boot

  • Verify the Expansion Pak/Jumper Pak is installed.

  • Verify the cartridge is inserted and the pins are clean.

  • Verify your video out connections.

A Red Light Illuminates When Plugged Into A Power Source

This power source is not compatible with N64PWR.  Verify that your brick is able to supply 15V at 2A at a minimum.  A 30W Brick is recommended.  Most 30W or greater bricks will Supply the needed voltage.

If you need assistance, please reach out to us on the contact form.
